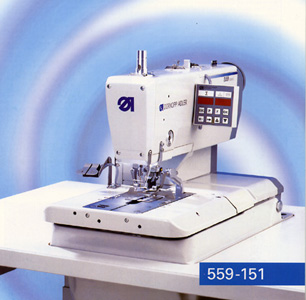

电子程控圆头锁眼机
durkopp   559-151-CNC

559-151—the new standard.
Finest eyelet buttonhole in all materials

559-151­—新一代一流的锁眼机适用于所有面料
With its new sewing kinematics together with state-of-the-art CNC technology the new 559-151 takes stitch firmation to a completely new quality level.
An electronically controlled needle thread tension guarantees perfect buttonholes in just any kind if buttonhole knives. For the first time an integral sewing light is being used,enablig easy identification of markings even on low contrast material.
The approved Durkopp adler operating concept ensures an extremely easy programming of all parameters­­—for a perfect buttonhole.
The semi-submerged machine head offers an optimum view into the sewing area in a fatigue-free seating position. Further-more the new 559 is characterized by smooth running even at top speed,low maintenance and ease of service.

新一代559-151锁眼机配备全新的缝纫动力和最先进的CNC控制技术,使锁眼线迹效果趋于完美。
采用独特的面线电子张力器,在各种不同的面料上都能获得完美的锁眼线迹。切刀压力的自动调节极大程度地延长了切刀的使用寿命。独创性地首次在缝纫区域安装了内置式冷光缝纫灯,使得锁眼区域标记清晰可见。
沿袭了杜克普爱华公司公认的完美的操作设计理念,所有参数的设定修改极为方便。
半沉降式机头的设计,不仅外观新颖美观,而且减少了操作时的疲劳度。新一代559在高速缝纫时能运转流畅,维护及保养也更为方便

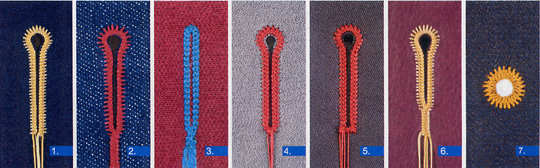

Examples for finest eyelet buttonholes-extremely flexible and precise
完美的锁眼实例-灵活精确
1.559-151 E1501
Example for buttonholes up to max.5 mm width;cut mode”cut after sewing”;Applications:men’s and ladie’s outerwear and sportswear;with or without eye,with or without taper bar/cross tack,with or without gimp; cut length;max.42 mm;sewing length:max.42 mm;needle thread:70/3 to 120/2;looper thread:70/3 to 120/2;gimp:30/3
1.       559-151/E 1501
锁眼宽度最大5mm;切孔方式;先缝后切;应用范围:男女装及运动装;带或不带圆眼;带或不带锥形尾/圆套结/十字套结;带虿淮鞠摺G锌壮ざ龋鹤畲?2mm;缝纫长度:最大42mm;面线规格:70/3-120/2;弯针线:70/3-120/2;芯线:30/3
2.559-151 E1573
Example for buttonhole width from 5 to 8 mm:cutting mode”cut before or after sewing”;Application:jeans and sportwear;width or without eye,with or without taper bar/round tack/cross tack.with or without gimp;with stepped upper clamping feet for jeans waistbands;cut length:max.42mm;sewing length:max.42mm;needle thread:70/3 to 120/2;looper thread:70/3 to 120/2;gimp:30/3
2.559-151/E 1573
锁眼宽度5-8mm;切孔方式:先切后缝或先缝后切;应用范围:牛仔及运动装;带或不带圆眼;带或不带锥形尾/圆套结/十字套结;带或不带芯线。配用于牛仔裤腰的特殊压脚;切孔长度:最大42mm;面线规格:70/3-120/2;弯针线:70/3-120/2;弯针线:70/3-120/2;芯线:30/3
3.559-151 E1524
Example for buttonhole width from 5 to 8 mm;cutting mode”cut after sewing”;Application:for flexible and stretchy mate-rial such as knitwear;without eye,with or without taper bar/round tack/cross tack,with or without gimp;cut length:max.42mm;sewing length:max.42mm;needle thread:70/3 to 120/2;looper thread:70/3 to 120/2;gimp:30/3
3.559-151/E 1524
锁眼宽度5-8mm;切孔方式:先缝后切;应用范围:弹性面料如针织服装;不带圆眼;带或不带锥形尾/圆套结/十字套结;带或不带芯线。切孔长度:最大42mm;缝纫长度:最大42mm;面线规格:70/3-120/2;弯针线:70/3-120/2;芯线:30/3
4.559-151 E1521
Example for buttonhole width from 5 to 8 mm;cutting mode”cut before or after sewing”;Applications:men’s and ladie’s outerwear and sportswear;with or without eye,with or without taper bar/round tack/cross tack,with or without gimp;cut length:max.42mm;sewing length:max.42mm;needle thread:70/3 to 120/2;looper thread:70/3 to 120/2;gimp:30/3
4.559-151/E 1521
锁眼宽度5-8mm;切孔方式:先切后缝或先缝后切;应用范围:男女装及运动装;带或不带圆眼;带或不带锥形尾/圆套结/十字套结;带或不带芯线。切孔长度:最大42mm;缝纫长度:最大42mm;面线规格:70/3-120/2;弯针线:70/3-120/2;芯线:30/3
5.559-151 E1521
Example for buttonhole width from 5 to 8 mm;cutting mode”cut before or after sewing”;Applications:men’s and ladie’s outerwear and sportswear;with or without eye,with or without taper bar/round tack/cross tack,with ot without gimp;cut length:max.42mm;sewing length:max.42mm;needle thread:70/3 to 120/2;looper thread:70/3 to 120/2;gimp:30/3
5.559-151/E 1521
锁眼宽度5-8mm,切孔方式:先切后缝或先缝后切;应用范围:男女装及运动装;带或不带圆眼;带或不带锥形尾/圆套结/十字套结;带或不带芯线。切孔长度:最大42mm;缝纫长度:最大42mm;面线规格:73/3-120/2;芯线:30/3
6.559-151 E1521 with supplementary kit 0580 590734
Example for buttonhole width from 5 to 8 mm;cutting mode”cut before or after sewing”;Applications:with supplementary kit 0580 590734 for buttonholes in leather garments;with or without eye,with or without taper bar/round tack/cross tack,with or without gimp;cut length:max.42mm;sewing length:max.42mm;needle thread:70/3 to 120/2;looper thread:70/3 to 120/2;gimp:30/3
6.559-151/E 1521配附件0580 590734
锁眼宽度5-8mm,切孔方式:先切后缝或先缝后切;
应用范围:皮革服装;带或不带圆眼;带或不带锥形尾/圆套结/十字套结;带或不带芯线。切孔长度:最大42mm;缝纫长度:最大42mm;面线规格:70/3-120/2;
弯针线:70/3-120/2;芯线:30/3
7.559-151 E1595
Example for round eyelets with a cut length diameter from 5 to 7 mm;cutting mode “cut before or after sewing”;Application:men’s and ladie’s outerwear,sportswear and jeans;needle thread:70/3 to 120/2;looper thread:70/3-120/2
7.559-151/E 1595
圆眼锁眼,切孔直径5-7mm;切孔方式:先切后缝或先缝后切;应用:男女外套,运动装及牛仔装;面线规格:70/3-120/2;芯线:30/3

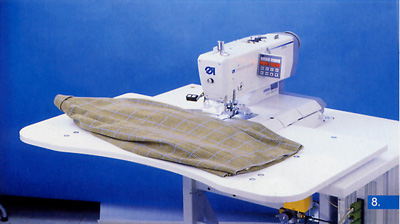

8.559-151/Rest table (0580 590504)
Rest table for standing operation and easier handing of coats and jackets,especially for multi-machine workstations
8. 559-151/配辅助工作台(0580 590504)
辅助工作台适用于站立式操作方式,方便操作,特别适用于多机台式工作站
9.559-151/Intergrated sewing linght(0580 100344)
Integrated cool sewing light for brilliant and shadow-free illumination of the sewing field
9. 559-151/配内置式缝纫灯(0580 100344)
内置式缝纫冷光灯可照亮缝纫区域切无阴影

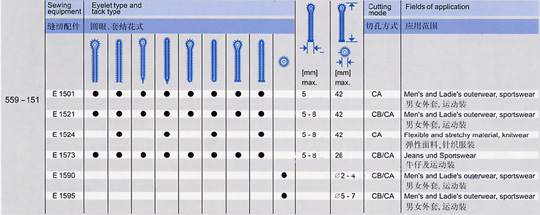

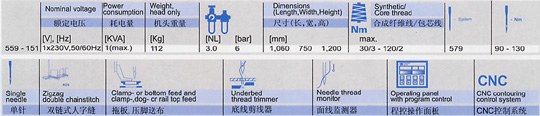

559-the techinical data                                                      559-技术参数

 CB       =        Cut before sewing CB    =  先切后缝
 CA       =        Cut after sewing  CA    = 前缝后切
 CB/CA    =         Cut or cut after sewing                     CB/CA     = 先缝后切或先切后缝
 ●       =        Standard equipment  ●    = 标准配置

559-Cut length packages
559-切刀组件:
Cut lengths packages for buttonholes”with eye” are available from 10mm to 42mm cut lengths(0580 L 01500 10-0580 L 01500 42)
锁”带圆眼”的钮孔时,切刀组件长度范围为10mm-42mm(0580 L 01500 10-0580 L 01500 42)
Cut lengths packages for buttonholes”without eye” are available from 6 mm to 42mm cut length(0580 L 01504 6-0580 L 01504 42)
锁”不带圆眼”的钮孔时,切刀组件长度范围为6mm to 42mm(0580 L 01504 6-0580 L 01504 42)
Cut lengths packages for round eyelets are available from 6mm to 42mm cut diameter(0580 L01599 x) and from 5mm to 7mm cut diameter(0580 L01595 x)
锁圆眼的切刀组件,切孔直径2-4mm(0580 L01590 x)及切孔直径5-7mm(0580 L01595 x)
559-Optional equipment
559-选购配件:
0580 590584 Supplementary kit”hip pockets”;for easier loading and positioning of hip pockets;consisting of a fabric deflector,upper and lower cloth clamps and a cutting block(cut length 18mm);max.sewing length 26 mm
0580 590584 用于”后裤袋”的锁眼配件,方便后裤袋的定位。它由缝料反撑装置,上下面料夹和一刀块组成(切孔长度18mm),最大缝纫长度26mm
0580 590704 Supplementary kit”buttonhole without eye”;max.cutting length 42mm
0580 590704 用于”不带圆眼”的锁眼配件,最大切口长度42mm
0580 590714 Supplementary kit”narrow buttonhole”;max.buttonhole width 5mm;for the adaptation of E-groups E 1521,E 15204 and E1537
0580 590714 用于”窄钮孔”的锁眼配件,最大切口长度42mm
0580 590724 Supplementary kit”relief type buttonholes”;facilitates the use of looper threads NM30/3
0580 590724 用于”仿手工缝钮孔”的锁眼配件,最大钮孔宽度5mm;适用于E 1521,E1524 and E1537
0580 590734 Supplementary kit”buttonholes in leather garments”;
with mushroom shaped throat plate
0580 590734 用于”皮革服装”的锁眼配件,配蘑菇状针板
0580 590744 Supplementary kit”buttonholes in poplin”;avoids the rolling effect in fine and densely woven fabrics;especially suitable for cutting mode “cut before”
0580 590744 用于”府绸面料”的锁眼配件,避免酥锏木砬L乇鹗视糜凇毕惹泻蠓臁狈绞?/FONT>
0580 590754 Supplementary kit”small eye”;eye dimensions 2.1×3.2mm;cut length max.38mm
0580 590754 用于”小圆眼钮孔”的锁眼配件;圆眼尺寸2.1×3.2mm;最大切口长度38mm
0580 590404 Spacer for the diatance from the buttonholes to the edge;for diatances from 8-26mm(standard equipment)
0580 590404 定位器,固定钮孔与缝料边缘的距离;距离范围为8-26mm(标准配置)
0580 590294 Spacer for the diatance from the buttonhole to the edge;for diatances from 8-26mm(standard equipment)
0580 590294 定位器,固定钮孔与钮孔之间的距离;距离的范围为65-300mm;可装于机针两侧
0580 590504 Rest table for standing operation;facilitates easier handing of coats and jackets,eapecially for multi-machine workstations
0580 590504 用于站立式操作的工作台。方便了缝料的操作,特别适用于多机台工作站
0580 100344 Integrated cool sewing light;pleasantly brilliant light for shadow-free illumination of the sewing field
0580 100344 内置式缝纫灯,照明缝纫区域且无阴影
9880 580002 Foot switch
9880 580002 脚踏开关
