多针链缝机

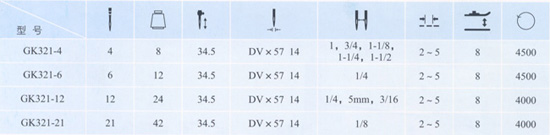

typical   GK321系列


以多针、链式线迹,使松紧带及装饰缝纫更便利
Multiple needle in chainstitches for easier attaching of elastic tapes and decorative seams.

     本机装有后拖轮,采用弯针纵向摆动机构,它与一般链式缝纫机不同的是采用拨杆机构,用拨线杆形成线环,挑线杆外置,机壳上部为全封闭型,可充分润滑。针间距种类很多,安装相应专用零件后,能在63.5mm的范围内最多排列21跟针。

  The machine has two rear pullers and the looper moves horizontally.It differs from common chainstitch machines in that it adopts the thread wiper lever mechanism,through which thread is formed into loops.The lever is fixed outside and the upper of the machine frame is enclosed to be fully lubricated.Needle gauge varies in length.Assembled with special components,the machine can arrange for 21 needles at most within a range of 63.5mm.

弯针弹出装置,便于操作
Looper Frame Ejection Device Easy to Operate

    因多针机构的弯针多,相互间的距离小,穿线困难,为此,本机有一套弯针架弹出装置,操作方便,结构合理。

No few loopers on multiple needle machines and short clearance between them make threading rather difficult.For that,the machine has a looper frame ejection device,which is easy to operate and rational in structure.
适合于各种松紧带的缝纫
Adaptable for Attaching Elastic Tapes

    因链式线迹有弹性,常用于缝制运动服的紧腰部位和衣袖裤腿的装饰条,从夹克衫、运动服到被套床罩,增加一些辅助零件后,就能变化出多种装饰形式,是服装厂不可缺少的缝制设备。

Chainstitches are often used to attach waisbands on sports wear and decorative strips on sleeves and trouser legs,from jackers,quit covers to bed covers.When added with some auxiliary conponents,the machine can sew a multiple of decorative patterns.It is piece of indispensable sewing equipment for garment factories.
