  产品展示

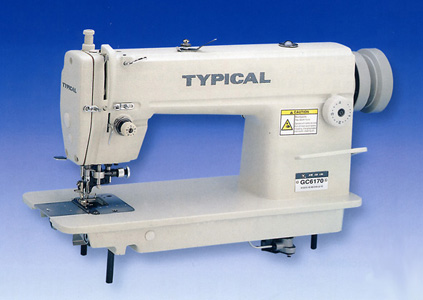

高速侧切刀平缝机
typical   GC6170

采用连杆式送料机构
采用切刀宽度可调的侧切刀机构
具有操作简便的切刀离合机构
适用于衬衫、童装、制服等需要切边和缝纫同时进行的加工工艺

LINK-DRIVEN NEEDLE FEED MECHANISM

●FITTING OF ADJUSTABLE SIDE TRIMMER

●CENTRIFUGAL MECHANISM WITH EASY OPERATION

●APPLICABLE FOR SEWING SHIRTS CHILDREN'S CLOTHES & UNIFORMS ALONGSIDE WITH EDGE TRIMMING


   该机具有可调式侧切刀机构,调节操作简便,可使缝制与裁切一次性完成。采用连杆式送料机构,连杆挑线、旋梭勾线、上下轴用螺旋伞齿轮传动,全自动润滑。噪音低、震动小、省时省力,提高工作效率。适于缝制男女衬衫、童装、制服、工作服、床单、窗帘等。

  Easy operation and adjustment with the fitting of adjustable side trimmer to perform synchronism of sewing and edge trimming.Link-driven needle feed mechanism with the needle bar to take thread up and the hook to catch thread. Both top shaft and bottom shaft driven by helical bevel gear,with the disk-type needle bar to take thread up and the hook to catch thread as well as auto lubrication. Higher work efficiency in low noise and littile vibration to save time & energy.Applicable for sewing shirts of men and women,children's clothes,uniforms,work clothes,bed sheets,drapes,etc.



   此机构可同时完成缝制和修边。缝制时通过简单的操作即可使切刀脱离或进入工作状态,机器转动时就会精巧的修边。

   This device performs synchronism of sewing and edge trimming.The trimmer is easily engaged or disengaged while sewing is being done.

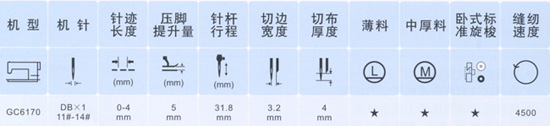

技术规格 Specifications

附件备有特殊的4.8、6.4针板、下斗及宽上刀等,如需其它特定要求规格,请在订货时指定。
Specific requirements are made to order
特殊切刀宽度:2.4mm、4.0mm、4.8mm、6.4mm、7.9mm、9.5mm
Specifuc edge width trimmed:2.4mm、4.0mm、4.8mm、6.4mm、7.9mm、9.5mm
