本机各项技术指标均达到国际一流标准，是工业缝纫理想、高效的平缝设备。
The specifications have achieced top level of internation standard.it is an ideal and high efficiency industrial lockstitcher.
具有低张力的缝纫机构
通过对挑线杆、旋梭、送料机构的合理改良，可以达到缝线在降低15%的张力下，仍能获得理想、满意的缝纫效果。
Sewing Mechanism with Low Tension
Reasonable improvements on the thread take-up lever,the rotating hook and the feed mechanism result in ideal and satisfactory sewing effect by 15% reduction of tension with any sewing threads.
效率完美的高速平缝机
由于挑线杆具有优良的高速耐久性，即使在高速缝纫状态下也能确保低震动、低噪音、高效率。
Perfect Efficiency
The thread take-up lever of super high speed durability ensures highly efficient performance of work in low noise with the little vibration during high speed sewing.
起皱少、上下缝料误差小
由于采用牙架曲柄偏心轴，送布牙的前后倾斜角度可自由调节，最大限度减少起皱及上下缝料误差。
Few Puckers & Little errors between Layers of Material
Due to adoption of eccentric axis on the feed bar crank,free adjustment to tilt the feed dog forward and backward reduces puckers and errors between layers of material
追求使用方便性
通过观察供油窗可以确认缝纫机的供油状态。旋梭的供油状况也可以通过油量调节螺钉适当进行调节。
Convenient Use
Oil supply is observed through window the oil check.Oil supply to the rotating hook is adjusted by the oil regulating nut.

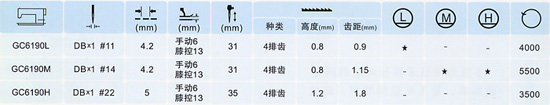

技术规格 Specifications
适用范围：GC6190L/M适用于男装、女装、童装等一般缝料缝制。GC6190H适用于皮革、人造革、牛仔布等厚缝料的缝制。
Scope of application:Adatable to sewing common material for men's clothing,women's dress and children's wear.and also good to sew heavy weight material of leather,artificial leather and jean.
|
