  产品展示

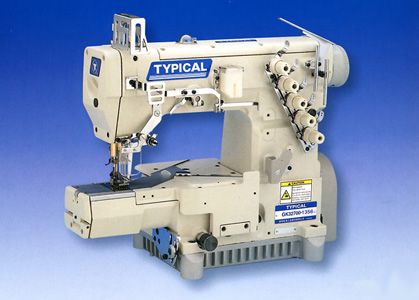

超高速筒式绷缝机

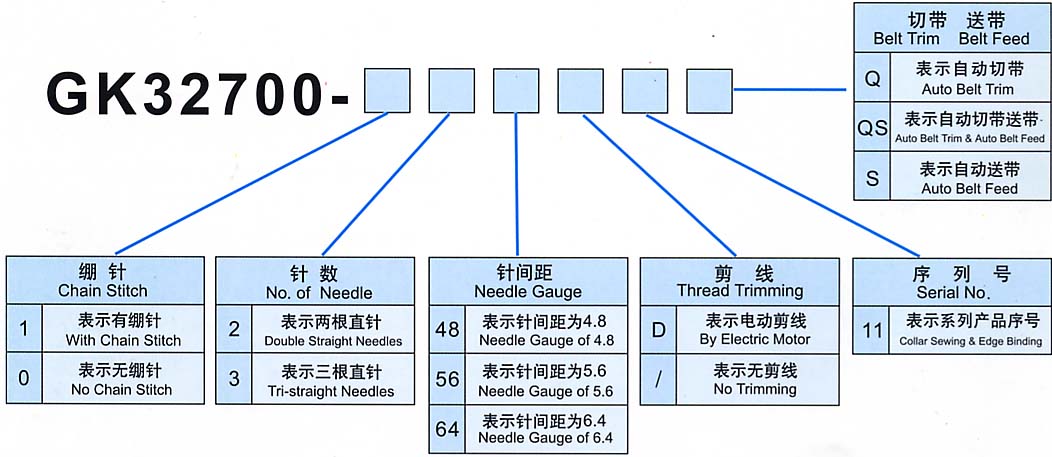

typical   GK32700系列

具有先进的传动机构 高速度  低噪音
具有操作简便的线迹调整机构   按纽式针距调节   杠杆式差动调节和弹出式过线机构  易操作  线迹美
适用于各种针织物小尺寸肩  袖的覆盖缝工艺

ADVANCED DRIVE MECHANISM

●STRUCTURES OF DISK-TYPE STITCH GAUGE ADJUSTOR,LEVER-TYPE ADJUSTOR AND SPRING-ACTUATED THREADING DEVICE MAKE CONVENIENT USE FOR CUSTOMERS.

●SUITABLE FOR ALL KINDS OF DOUBLED-COUERING SEWING OF SHOULDERS,SLEEVES ON KNITWEAR.

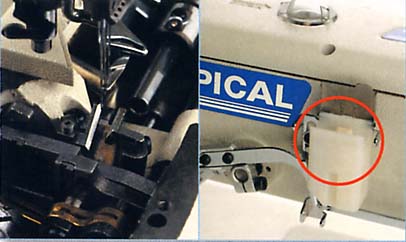

强制排油机构
Strcture of Forcible Discharge of Oil
采用铜管和油毡进行强制排油,可有效地控制针棒机构处的油量,消除漏油现象。

The adoption of copper pipe and oil felt for oil discharge can help to control the volume of oil around needle bar with efficiency and eliminate oil leakage.

穿线简单易行
Threading Easy
穿线时只需轻轻按动按纽,打线凸轮架便会弹起,即可简单地进行穿线,进一步提高操作工的工作效率。

When threading,only press the button gently,the cam will be sprung upward.it can improve efficiency of work.

安全装置
Safe Device
由于安装了护眼和护手等安全装置,在缝制中可保护操作工的安全。

Safe device can guarantee workers'safety due to that the machine is installed eye guard and hand guard.

小的细筒底板
Small slim Cylinder Base Plate

本机具有与众不同的280mm圆周的细筒底板,最适用于各种小尺寸的袖口或衬衫的覆盖缝工艺。

The slim cylinder base plate is 180mm in circumference,it applies ti cover seam on various cuffs or shirts of small size.



上下轴采用同步带传动
Upper and lower Shaft Driver by Synchronous Belt

使机器运转更稳定,更准确,降低了机器的震动。

It makes machine more stable and accurate.At the same time,it reuduces the vibration.



差动调节
Different Adjustment

杠杆式差动调节,即可手动又可脚动,使操作变的简单自如,最适合伸缩面料的各种缝制要求。

The lever type differential adjustment can be made by hand or by foot to make the operation simply and freely.it is capable for sewing various flexible fabrics.


配有硅油装置
Silicone Oil Device

机器高速运转时,由于同布料的摩擦,可使机针的温度达到摄氏200度左右,为了降低机针的温度,防止高温时面料的熔化,以及为使针线顺畅地通过每处线道,而配备了硅油装置,可获得稳定美观的针脚。




materials and mechine,the temperature of needle can reach 200℃ so when machine is running at high speed.In order to reduce the temperature of needle and prevent fabrics from melting at very high temperature ,as well as to make thread pass smoothly the machine is fitted with silied oil device for getting steady and beautiful stitch.

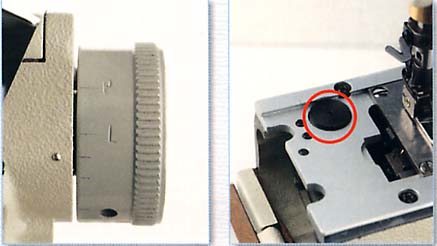

针距长度的调节
Adjustment of Stitch Length

由于采用了按钮式,使针距长度的调节变的简单易行。

The button type adopted maked the adjustment of stitch length simple and easy.




     该机是为满足市场需要,方便用户使用而设计的小型圆筒机体。机筒的圆周长只有280毫米,特别适用于儿童服饰的领口,袖口等的装饰缝,且对针织品的筒状缝纫机有适当的辅助功能。对于各种布料的专门缝制也能实现其高效率及高品质的性能,适应各种覆盖缝工艺,最擅长缝纫各种针织的小尺寸肩、袖的覆盖缝,配上鞍轮机构上裤腰松紧带特别方便。是用户理想的高效缝制设备。

Small size for the convenience of users.The cylinder of 280mm in circumference applicable for decorative seaming on the collar and the sleeve of children's wear and for cylindrical seaming on knitted wear as well. Available also for special quality seaming on different clothes with highly efficient rate.
