超高速绷缝机

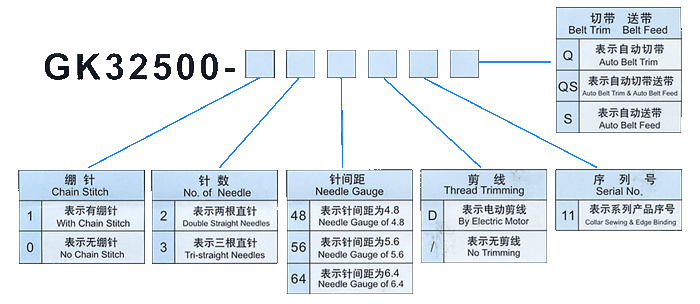

typical   GK32500系列

具有先进的传动机构  高速度   低噪音

具有操作简便的线迹调整机构   按钮式针距调节机构   杠杆式差动调节机构和弹出式过线机构

适用于棉毛衫和中厚针织面料的装置缝纫

ADVANCED DRIVE MECHANISM

STRUCTURES OF DISK-TYPE STITCH GAUGE ADJUSTOR,LEVERTYPE ADJUSTOR AND SPRING-ACTUATED THREADING DEVICE MAKCONVENIENT USE FOR CUSTOMERS.

APPLICABLE FOR DECORATING SEWING ON COTTON SHIRTS,KNITWEAR.

杠杆式差动调节
Level-style Different Adjustment



操纵杠杆,就可以进行差动调节,配上传动装置后还可以在缝纫中随意调节。

Move the bar to perform the differential adjustment.And free adjustment can be performed as the knee-control device is fitted.

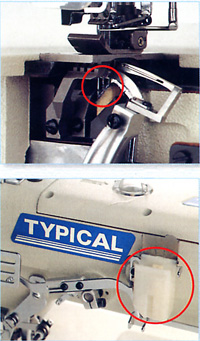

轻松穿底线
Threading Bobbin Thread Easily



具有底线架弹出装置,只要轻轻一按,就可以轻松穿线,再轻轻一推,就可以恢复工作状态。

With the bobbin thread bracket springing out device,the thread can be easily threaded through just with a slight press,and reset is normal state just with a slight push

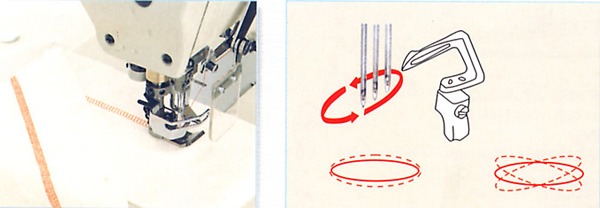

可调式弯针传动机构
Adjustable Looper Driving Device


具有可对弯针运动轨迹进行微调的传动机构,
在使用不同规格的机针时,都能得到理想的缝纫线迹。

Available with the driving device for microadjustment of the looper movement pring.The ideal stitch can be obtained as the needle of different size is used.

按钮式缝距调节
Dial-style Stitch Gauge Adjustment



按下按钮后,转动手轮就可调节缝距,
止动装置可以防止错误操作。

After the button is pressed down,turn the balance wheel to adjust stitch gauge.The stopping device can prevent erroneous operation.
双重硅油润滑系统
Dual Silicon Oil Lubrication System



为了防止机针在高速缝纫时产生高温,
采用了双重硅油冷却装置,不论使用
化纤缝线或化纤面料,都可以高速缝纫。

The double silicon oil lubricating device is adopted in order to prevent needles from producing high temperature at high velocity of sewing,so whatever fabric thread or fabricclothes is used,the machine can perform sewing at high velocity.

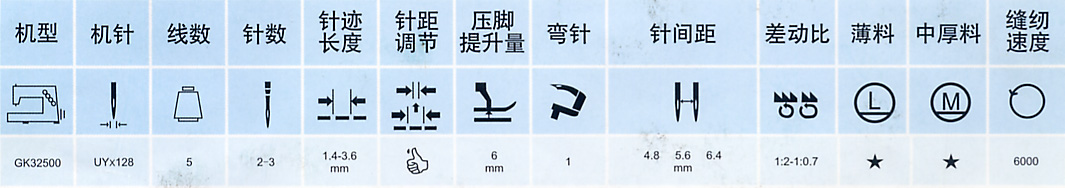

GK32500系列超高速三针绷缝机,采用了先进的传动机构和操作简便的针距调整机构,能高效率缝制高品质的针织服装。本机型的针杆传动采用回转机构,得到了高转速、低噪音的理想使用效果。按纽式针距调节,杠杆式差动调节和弹出式过线机构给用户提供了方便。强力油泵与致密的滤油器结合的供油方式能使机器轻松运转,全封闭的平台式机体可保证衣料的洁净。本机型有双重机针冷却装置,对面料与缝线的适用范围宽,是用户理想的缝制设备。本机适用于棉毛衫、棉毛裤等中厚针织面料的装饰缝制。

  Super-high speed three-needle interlock chainstitchers in GK32500 series,with advanced drive mechanism and stitch adjustor,can efficiently sew knitted wear of super quality.The rotary needle drive mechanism runs at high speed but in low noise.Structures of disk-type stitch gauge adjustor.lever-type adjustor and spring-actuated threading device make convenient use for customers.The introduction of high-pressure oil pump and compact oil filter makes the machine into smooth running.The sealed flat-bed machine keeps sewing material clean.It has dual cooling devices for different sewing material and adapts itself to wide range of sewing threads.
