  产品展示

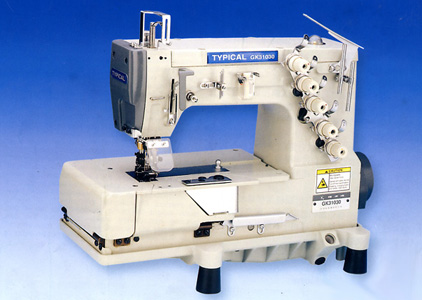

高速绷缝机
meibao   GK31030系列

具有较强的缝厚能力

具有可靠的自动润滑功能

具有独特的移动护针机构

WITH RELIABLE AUTO-LUBRICATION SYSTEM

WITH PATENT NEEDLE PROTECTION MECHANISM

SUITABLE FOR LAP SEAMING,COVER-SEAMING AND DECORATIVE SEAMING ON KNITTING UNDERWAR,SPORT SHIRTS AND OTHER SIMILAR GARMENTS

      GK31030型高速中厚料三针绷缝机采用齿轮泵内循环自动润滑系统和可靠的密封方式,能保证在高速时的正常运转和衣料的洁净。装有独特的移动护针机构和上轴外支座,使其增强了缝厚能力。具备基本缝、单边压平缝和拼接缝的双面装饰缝纫功能。
      GK31030-5A型高速双针滚领边缝厚能力强,并且装有卷边器和过带装置,能自动将长带卷成上包下散的样式,适用于针织内衣单面绷缝滚零领滚边。
      GK31030-11型高速三针绷缝滚领机缝厚能力强,并且装有卷边器和过带装置,能自动将长带卷成上包下散的样式,适用于针织内衣的三针双面绷缝滚领滚边。

GK31030 High Speed Medium & Heavy Weight Material Three-needle interlock Chainstitcher adopts gearmode inter circulation auto-lubrication system and excellent sealing mode,which can guarantee the normal  operation and keep the fabrics clean while the machine is working at full speed. The unique moving needle-protection mechanism and outside supporting base of upper shaft guarantee to seam heavy weght fabrics,it is suitable for normal sewing,flattening out overlock seams and lap seaming with top cover thread.
GK31030-5A High Speed Two-needle Collar Binding Machine,with the capacity of sewing heavy weight fabrics,equipped with binder and passing belt device,can make the belt automatically into the upper part tight and the lower part loose.it is available for collar binding and binding on one side of knitted underwears.
GK31030-8 High Speed Two-needle Collar Binding Interlock Chainstitcher,capable of sewing heavy weight fabrics,equipped with binder and passing belt device,can make the belt automatically into the upper part tight and the lower part loose.it is suitable for collar binding and binding on two sides of knitted underwears.
GK31030-11 High Speed Three-needle Collar Binding  interlock Chainstitcher,with capable of sewing heavy weight fabrics,is equipped with binder and passing belt device which can make the belt automatically  into the upper part tight and the lower part loose,it is used for collar and binding on two sides of knitted underwears.

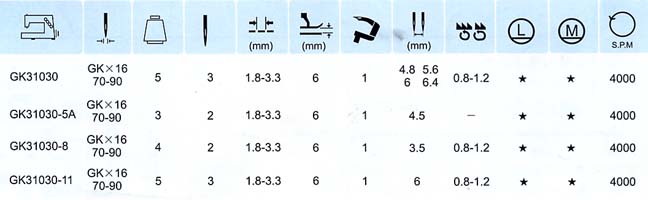

技术规格
