整机分类 |
 |
|
|
|
单针高速自动剪线平车(薄料)

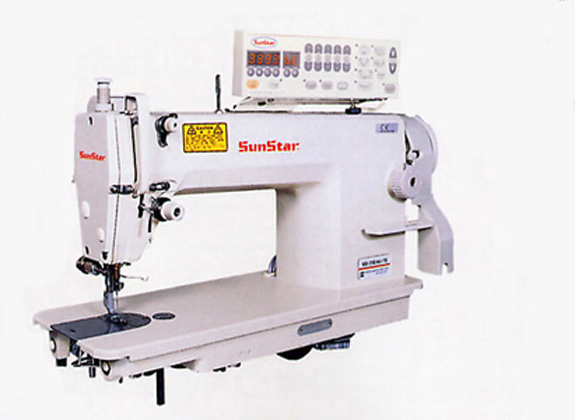

sunstar KM-250AU/-7
中 ● 剪线结构简单合理，故调整方便
● 缝线张力的稳定性
● 采用无需加油的特殊材料旋梭，防止油污染作业物
● 防止了真丝品或极薄料缝物的起皱现象

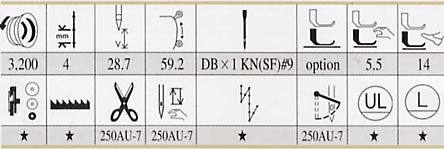

规 格
|
MODEL |
KM-250AU-7S(N) |
|
LOCK STITCH TYPE |
Drop Feed |
|
APPUCATION |
Extra Light Material |
|
MAX.SEWING SPEED |
3,200spm(Commercial Use:2,500spm) |
|
MAX.STITCH LENGTH |
4mm |
|
NEEDLE STROKE |
28.7mm |
|
THREAD TAKE-UP STROKE |
59.2mm |
|
HEIGHT OF
PRESSER FOOT |
BY BAND |
5.5mm |
|
BY KNEE |
14mm(Max.) |
|
BY AUTOMATIC |
Max.14mm(Optional) |
|
HOOK |
None-Lubrication Hook |
|
NEEDLE |
DB×1 KN(SF) #9 |
|
TRIMMING DEVICE |
Trimming(-7S/-7N):Provided |
|
MOTOR |
Trimming(-7S):Servo Motor |
|
Trimming(-7N):N.P Motor |
|
Non-Trimming Type(No Mark):Clutch Motor |
|
|
|
|
|
