规  格

MODEL		KM-2070-7L	KM-2070-7M
ZIGZAG WIDTH		8mm/10mm(2-Step,3-Step)
MAX.SEWING SPEED		5,000spm(4000spm at the time of shipment)
MAX.STITCH LENGTH		Max.2.5mm	Max.2.5mm
HOOK		DP Hook(Titanium Coated Inner Hook),Hook Center is offset
HEIGHT OF PRESSER FOOT	BY HAND	6mm
	BY KNEE	10mm
	BYAUTOMATIC	7mm(Optional)
NEEDLE		SY1965NM 70/10 or DP×5#10
AUTOMATIC THREAD TRIMMER		★
UPPER THREAD FEEDLE DEVICE		★
BACKTACK/CONDENSE DEVICE		★
THREAD WIPER		★
PROVIDED PATTERN		Basic:8 Kinds,16 Patterns
USER INPUT FUNCTION		Max.99 Patterns,256 Stitches Per Pattern
PATTERN INPUT FUNCTION		Built in the Program Unit Box
SEWING M/C MOTOR		550W AC Servo Motor
POWER SUPPLY		1-Phrase 100V,110V,120V,200V,220V,240V
		3-Phrase 200V,220V,240V,380V,440V

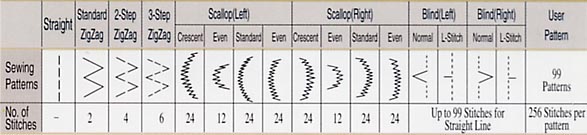

Table Of Standard Patterns
